Claim 2025 Sinoboom AB22J Plus Articulated Boom Lift

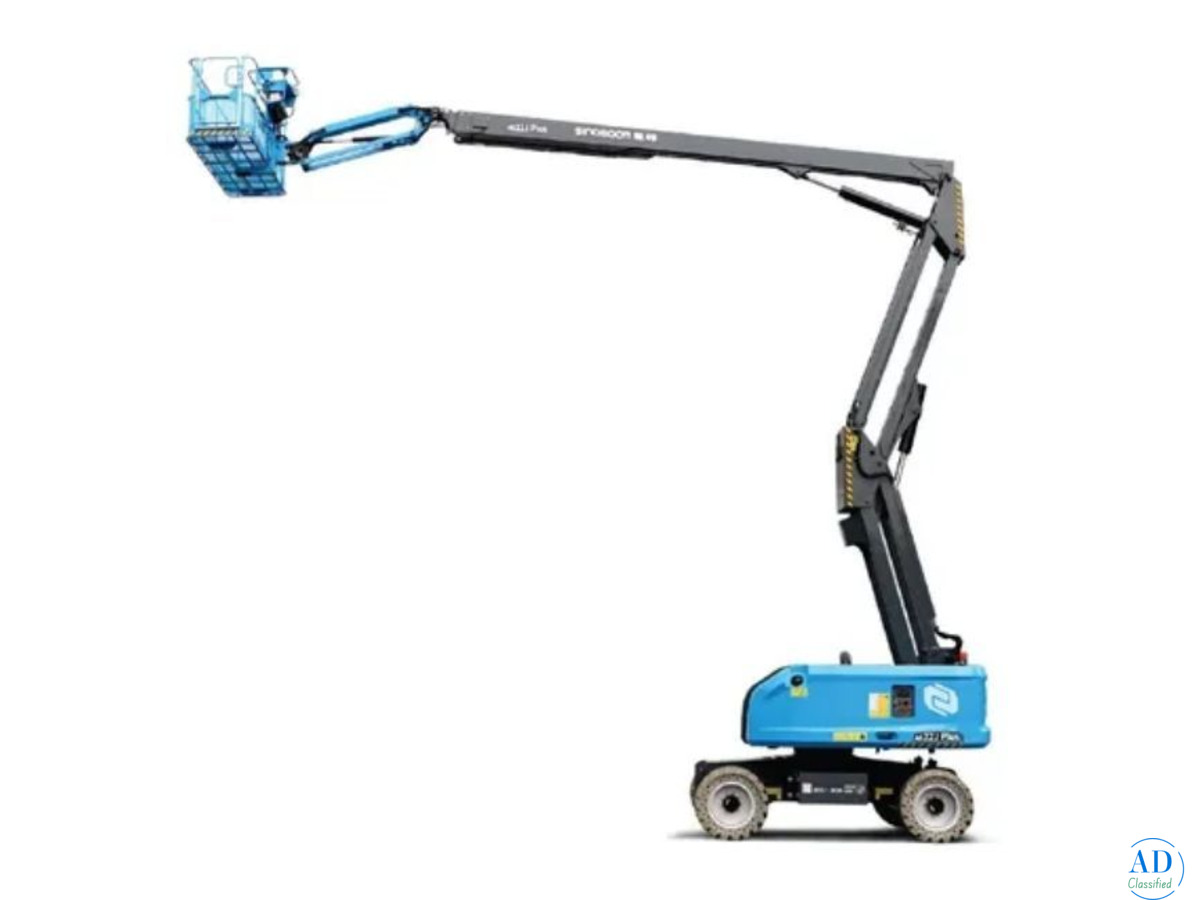

Sinoboom AB22J Plus – Heavy-Duty Access Made Easy
Built for productivity, the AB22J Plus handles 454 kg loads with ease and automatically adapts to optimize performance. The all-terrain AC drive, active oscillation, and 360° rotation deliver maximum efficiency across any site. Operators benefit from stable controls, precise maneuverability, and smart fault diagnostics.

Highlights:

Agile Build, Heavy Lift Capacity

Reliable on Rough Terrain

Safe & Smart Operation

Technical specification:

Reference Number- AMH268
Working hours- 0 hrs
Operating weight (kg)- 12,000 Kg
Engine Output- 36 kW
Max Number of Operators- 3
Working Height- 23.6 m
Platform Capacity- 454 kg
Telematics- Available
Max Horizontal Extension- 13.35 m
Power- Diesel
Drive × Steer- 4WD x 2WS (4WS）
Turntable Rotation- 360°/Continuous
Gradeability- 40%


Features:

Tilt protection system with a max allowable tilt angle of 5°
Hydraulic leveling and emergency stop/lowering systems
Rear position confirmation
Rotating warning light, horn, and buzzer for safety
Fault diagnosis system
Proportional control with 3 joysticks
Continuous 360° turntable rotation
Active oscillating function
Four-wheel steering - four-wheel brake
Weighing system and automotive sleeves for all pipes
AC power line to the platform
7-in smart screen and voice broadcast
