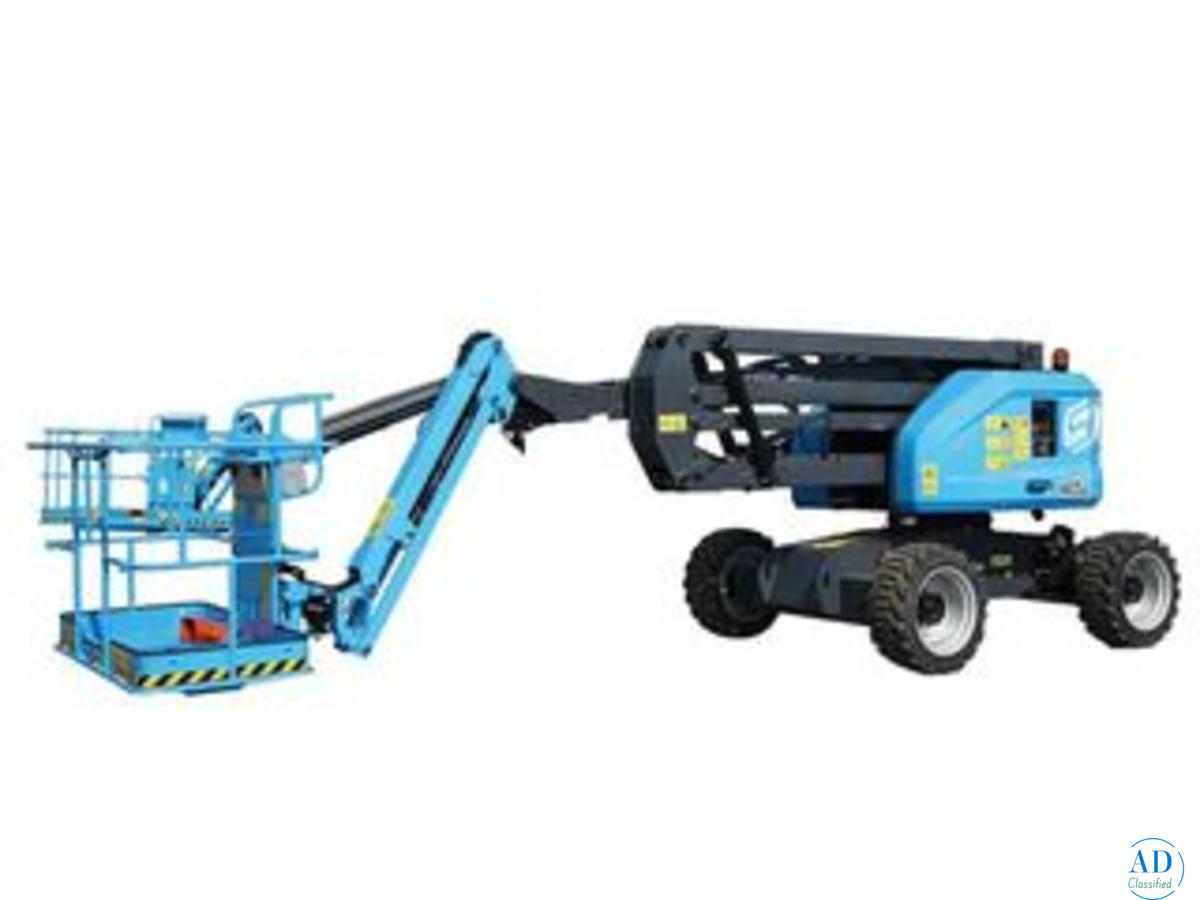

Discount Alert On 2025 Sinoboom AB15J Articulated Boom Lift

With a working height of 16.7 meters, the Sinoboom AB15J engine-powered articulating boom lift is designed for accuracy and efficiency. It is perfect for confined locations because of its negligible tail sweep and short width. The secondary arm does not need to be adjusted in order to raise or lower the platform. Its straightforward linkage design and hydraulic levelling guarantee dependable operation, and its three joysticks with variable proportional control provide accuracy and precision. The AB15J boom lift, which can be used both indoors and outdoors, offers dependable, high-reach capabilities for tasks related to facility management, maintenance, and construction.

Highlights: Exceptionally Small Wheelbase for Constrained Areas
Quick and Adaptive Height Changes
Dependable for Ongoing Lifting Tasks
Technical specification

Reference Number
AMH209
Working hours
0 hrs
Operating weight (kg)
7,080 Kg
Engine Output
36 kW
Max Number of Operators
2
Working Height
16.7 m
Platform Capacity
250 kg
Max Horizontal Extension
8.5 m
Power
Diesel engine
Drive × Steer
4WD × 2WS
Turntable Rotation
355°/Non-Continuous
Platform Rotation
160°
Gradeability
40%
Features
Narrow width with zero tail sweep
Oscillating function
7-in display screen
4WD× 2WS
Proportional control with 3 joysticks
Automotive-grade sleeves for all pipes
Hydraulic platform leveling
Weighing system
Tilt protection system Max tilt rating to 5°
Emergency stop/lowering system
Telematics-ready connector
Non-marking tires foam-filled / solid
AC power to platform
