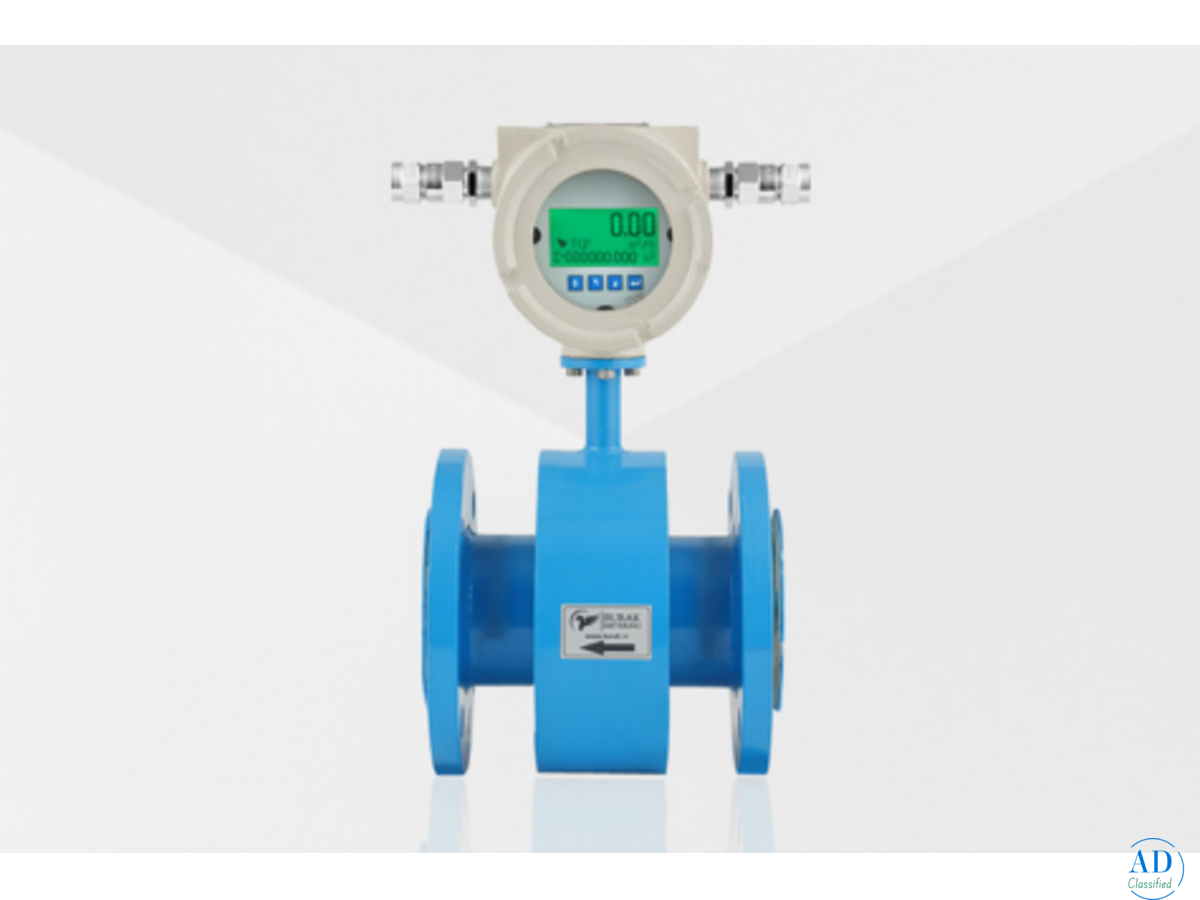

Digital Electromagnetic Flow Meter for Industrial Use

The BE- -G Electromagnetic Flow Meter is engineered for precise measurement of conductive liquids like water, wastewater, and chemicals. With an integral LCD display, IP67 protection, and outputs including 4-20mA, RS485 Modbus, and pulse, it ensures real-time monitoring and reliable data for industrial applications. Built with PTFE or Neoprene liners and a flanged connection, it delivers ±0.5% accuracy, bi-directional measurement, and long-term durability, making it ideal for water treatment, chemical processing, and manufacturing.

Key Specifications
Liquid Compatibility: Water, wastewater, chemicals

Conductivity: > 5 μS/cm

Liner Material: PTFE, Neoprene

Pipe Size: DN15–DN150 (up to DN500 available)

Display: Integral LCD

Outputs: 4-20mA, RS485 Modbus, Pulse

Power Supply: 230 VAC

Ingress Protection: IP67

Accuracy: ±0.5% of reading

Measuring Range: 0.3–12 m/s

Temperature Range: -20 to +120°C (PTFE), -20 to +60°C (Neoprene)

Pressure Rating: Up to 16 Bar G

Features & Benefits
High-accuracy magmeter with no moving parts

Chemically resistant liners for harsh fluids

Empty pipe detection and bi-directional measurement

Fast response time with negligible pressure drop

Easy installation with industry-standard flanged ends

Performance unaffected by fluid density, viscosity, or temperature.
